| Brand Name : | Masing Motor |
| Model Number : | MS-BL2838 |
| Certification : | 16949,RohS,CE,ISO |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 1000000piece/per month |
| Delivery Time : | 3-5 work weeks |
24v Dc Brushless Motor 10000 Rpm Title:
28mm 24v Dc Brushless Motor 10000 Rpm For Spin Coater, Vending Machine, Pump BL2838
12volt Brushless Dc Motor Description:
Rated Voltage Range:DC 6V-24V
Rated speed :1000rpm -10000rpm
The motor speed is proportional to the motor voltage
Torque :10g.cm-200g.cm
The torque of the motor is nronortional to the speed of the motor
Motor type :Brushless dc motor
Motor default direction:CW&CCW
Motor size :φ28mm*L38mm ,diamter 28mm Length 38mm brushless motor
Motor shaft :φ2.3mm or others
Motor type :Round ,Flat ,D-cut,Threaded shaft ect
Bearing type:Oil bearing or ball bearing
Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.
Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.
Working temperature:-40~+60°c
Structure selection:Built-in driver or external driver
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Applications :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
We can provide samples for your test.

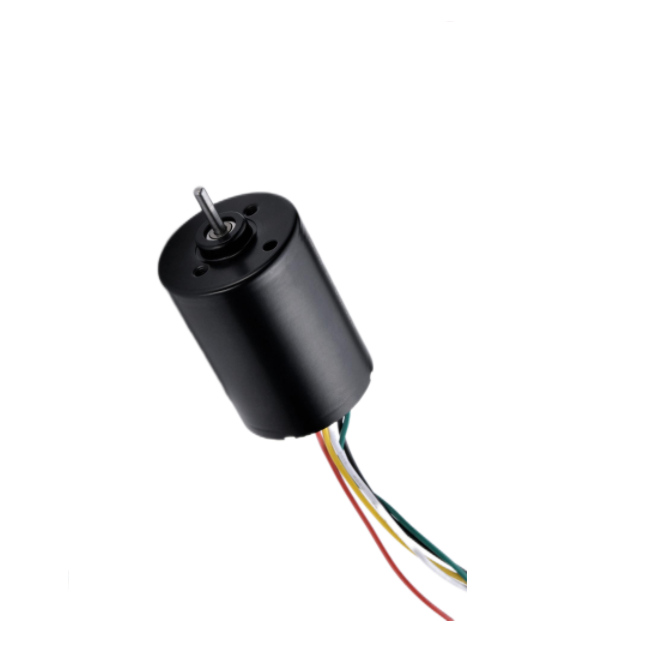

24v Dc Brushless Motor 10000 Rpm Product Photo:
24v Dc Brushless Motor 10000 Rpm Product Spec:
24v Dc Brushless Motor 10000 Rpm Typical Applications
● Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
Motor Data:
|
Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||
| Operating Range | Rated | Current | Speed | Current | Speed |
Torque | Power |
Efficiency | Current |
Torque | |
| A | rpm | A | rpm | g-cm | W | % | A | g-cm | |||
| BL2838*** | 9~14V | 12V | 0.04 | 3550 | 0.18 | 2900 | 50 | 1.5 | 71.5 | 0.8 | 275 |
| BL2838*** | 19~26V | 24V | 0.10 | 6400 | 0.31 | 4850 | 104 | 5.1 | 67.5 | 1.0 | 434 |
Packaging and delivery:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools,Driverless,
Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:Are you BLDC MOTOR manufacturer for OEM&ODM?
A1:Yes,CDM IS BLDC MOTOR manufacturer.We provide OEM&ODM
|
|
